Golf course lake and water hazard liners

Overview

Lined water features on a golf course do three jobs at once:

• Hold predictable water levels through a dry UK summer, when irrigation demand peaks and natural infiltration losses are highest.
• Read honestly as a hazard from the tee, with no algal sheen or visible liner edge.
• Survive 30-plus years of grounds traffic without forcing a course closure to reline.

A reinforced polymer membrane suits all three because the internal scrim spreads point loads, the welded panel construction has no seam-tape weak points, and the matte black finish disappears under as little as 100 mm of clean water.

Common use cases

On a typical 18-hole layout the same membrane is specified across several feature types:

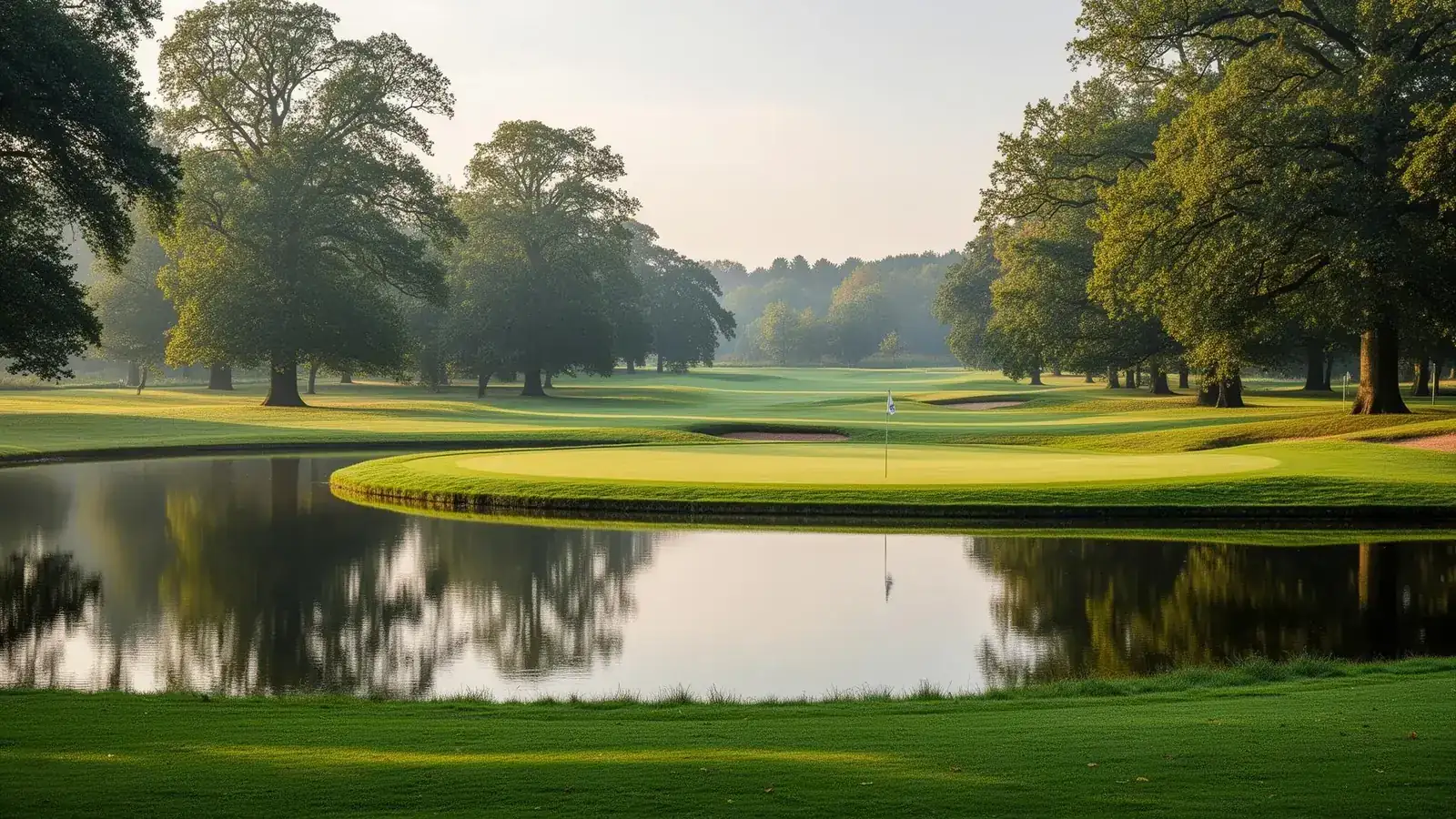

• Signature water hazards on par-3s and dogleg par-4s, often as freeform shapes draped around existing topography.
• Irrigation storage lakes — sometimes called balancing or compensation lakes — holding winter abstraction and recycled drainage to feed the sprinkler network through summer.
• Decorative ponds and water gardens around the clubhouse, halfway hut and practice greens, adding visual interest and biodiversity value.
• Lined attenuation ponds handling the SuDS requirements that come with most new course builds and major redevelopments.
• Re-lining failed clay puddle, bentonite or first-generation PVC features that have begun to leak.

Why reinforced polymer

Reinforced polymer fits golf-course work for four practical reasons:

• Freeform drapeability. At 0.7 mm and 0.61 kg/m² the membrane folds cleanly into the irregular contours architects favour, without the heavy crease memory of butyl or thick EPDM.
• Aesthetics. The matte black finish reads as depth from the tee, and planted margins or beach stones tie the liner edge invisibly into the bank.
• Lifespan. A 45-year lifespan, with real-world UK installs routinely exceeding 30 years, minimises future course-closure disruption.
• Leak-tightness. Hot-air welded seams test stronger than the parent sheet, so an irrigation storage lake holds its head pressure reliably and protects the abstraction licence behind it.

Cold flexibility down to -30 °C and warm-side stability to +70 °C cover any UK operating year.

Installation

A clean install starts with the subgrade. The excavation is dressed to remove sharp stones, flints and protruding roots, then graded to a low point for any future drain-down or skimmer outlet.

A 300 gsm needle-punched geotextile underlay is laid across the whole basin and 1 m beyond the planned waterline; on shallow rock, shale or reclaimed ground we step up to 500 gsm over a 50 mm sharp-sand bed.

Workshop-prefabricated RPM panels are then rolled out, overlapped and hot-air welded on site by certified installers into a single continuous membrane. The perimeter is anchored in a 300 mm trench, backfilled with the original spoil and hidden under bank planting, turf or stone revetment. Inlet and outlet penetrations — irrigation drawdown, top-up feeds, overflow weirs — are detailed with welded boots.

Most signature hazards up to 2,000 m² are welded and watertight within a single working day.

Sizing & cost

Size each lake as length + 2× maximum depth + 1 m overlap, by width + 2× maximum depth + 1 m overlap; for irrigation storage lakes above 1,000 m², add 8–12% for panel-weld overlap.

Fitted RPM water hazards typically sit 20–35% below the installed cost of equivalent EPDM, butyl or bentonite-mat systems once welded labour, freight and lifetime top-up are accounted for.

Maintenance is light:

• An annual walk-round in spring to check the anchor trench, edge planting and any visible seams.
• Periodic skimmer and inlet-screen clearing.
• A desilt of the deep zone roughly every 10–15 years depending on catchment run-off.

The membrane itself is field-repairable — a clean patch hot-air welded over any damage restores full performance and remains covered by the original 45-year lifespan.
