EPDM Rubber Pond Liners

Overview

EPDM (ethylene propylene diene monomer) is a vulcanised synthetic rubber, supplied as a single-ply unreinforced sheet typically 1.0 mm or 1.14 mm thick. The most widely specified UK grades are produced as large factory-vulcanised sheets up to roughly 15 × 30 m, with anything larger joined on site using a cured-rubber seam tape under a primer.

The material is highly elastic — it stretches around 300% before failure — and recovers from creasing well, which is why it drapes neatly over shelves and into corners on garden and koi ponds.

This page compares EPDM against other flexible-membrane pond liners. If you are weighing a rigid preformed shell instead, start with our pond liner vs preformed pond guide.

Pros and cons

Where EPDM is strong:

• Forgiving drape over shelves and tight features thanks to high elongation.
• Plasticiser-free and fully fish- and wildlife-safe.
• Excellent cold flexibility — usable down to roughly -40 °C, so it doesn't go brittle in a UK winter.
• Long real-world track record on UK ponds.

Where it is weaker:

• Heavy at ~1.2 kg/m² — large sheets need three or four people.
• Unreinforced, so point loads from flints, roots or hooves rely entirely on the underlay.
• On-site seams use taped lap joints, not heat welds; on big jobs every taped metre is a future inspection point.
• Fresh sheets can carry a light talc film and a residual rubbery odour that benefits from a rinse and short cure before stocking koi.

Lifespan in the UK

Most reputable UK EPDM brands carry a 20–30 year manufacturer guarantee, with documented installs from the early 1990s still in service. Real-world field life of 25+ years is realistic when the membrane is laid over a 300 gsm geotextile underlay on a properly dressed subgrade and the perimeter is anchored in a trench.

The usual failure modes are not the rubber itself but mechanical: a taped seam that lifts after decades of thermal cycling, or a puncture from a sharp object that was never adequately covered by underlay.

Fish and wildlife safety

EPDM is plasticiser-free and certified fish- and wildlife-safe by every major UK supplier. It is one of the standard koi-pond materials in the UK and Japan and does not measurably affect pH or water hardness in normal use.

Fresh sheets occasionally release a trace mould-release oil and a faint rubbery smell. Best practice is to fill, rinse and partially drain the pond once before stocking high-value fish, or to leave it filled for one to two weeks before introducing koi — a cosmetic precaution rather than a toxicity concern.

Installation

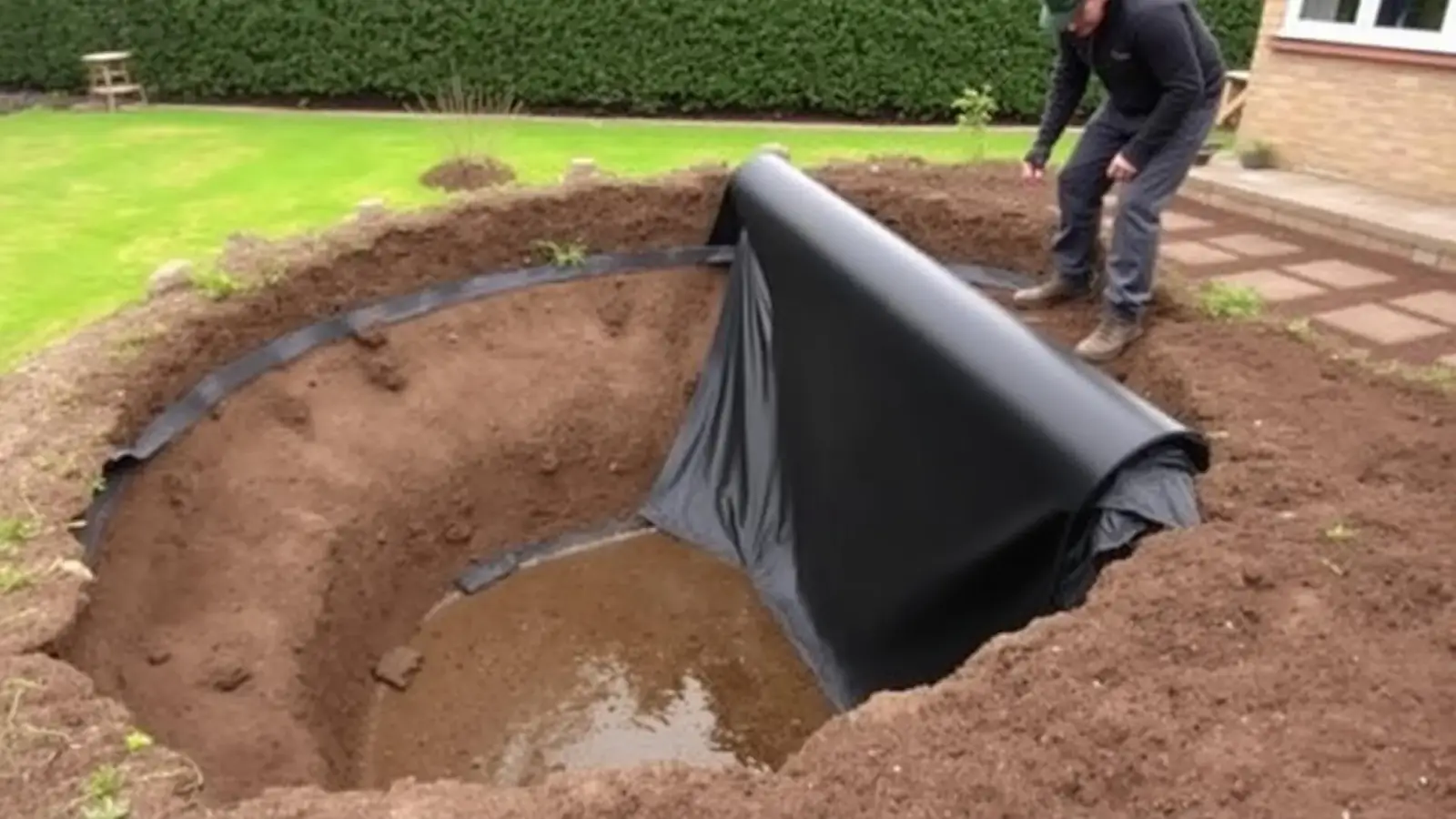

EPDM is rolled out cold and drapes into the excavation without heat. The big practical decision is sheet size:

• Up to ~450 m² — order a single factory-vulcanised sheet and avoid all on-site seams.
• Larger than that — accept on-site seam tape, which a competent installer can lay reliably but which adds inspection burden over the lifetime of the pond.

A 300 gsm needle-punched underlay is the minimum on clean ground, stepping up to 500 gsm on flint, shale or reclaimed subsoil. The perimeter is anchored in a 200–300 mm trench backfilled with the original spoil. EPDM is heavy, so plan extra hands for sheets above ~50 m².

Cost and sizing

Size as length + 2× maximum depth + ~450 mm overlap, by width + 2× maximum depth + ~450 mm overlap. Underlay matches the finished sheet.

Current UK trade rates for 1.0 mm EPDM typically sit in a ballpark of £6–£10 per m² for the membrane alone in domestic sizes, falling at large reservoir scales. Fitted prices vary widely with access, underlay specification and edge detailing — get a written quote against a measured site rather than relying on per-m² numbers in isolation.

EPDM rubber vs reinforced polymer (RPM)

EPDM and reinforced polymer (RPM) overlap heavily in the UK market and the honest answer is that both are good liners.

• EPDM wins on extreme cold flexibility and on small-to-medium ornamental ponds where a single drop-in sheet eliminates all on-site seams.
• RPM wins on weight (roughly half), on weldable seams that test stronger than the parent sheet, and on any large or freeform basin where panels have to be joined on site.

For a fuller side-by-side see our RPM vs EPDM pond liner comparison.

Are EPDM and rubber pond liners the same thing?

Plan your install

Whichever material you settle on, the free pond liner size calculator converts basin dimensions into a sheet size in seconds. For a full side-by-side against our own membrane, see the reinforced polymer (RPM) spec sheet and the wider pond liner comparison.
